'Real' real-time programmatic advertising with TensorFlow

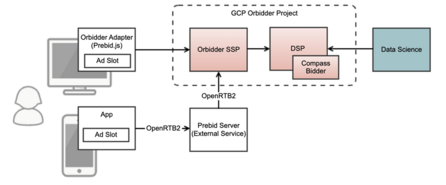

Figure 1: Basic structure of the SSP/DSP

Connecting otto.de to the system created a number of requirements that couldn't be mapped with the setup we had been running to date.

So far, for all known users ('known' means an Otto cookie is currently on their end terminal) every 2 hours we determined via a batch process which campaign could suit them well, on the basis of a range of features (click history, abandoned shopping carts, etc.). This user-specific assignment was then exported and logged in the DSP. However, this pre-calculation and the focus on one campaign per user triggered two technical issues – and there was an organisational 'sporting challenge' thrown into the mix too.

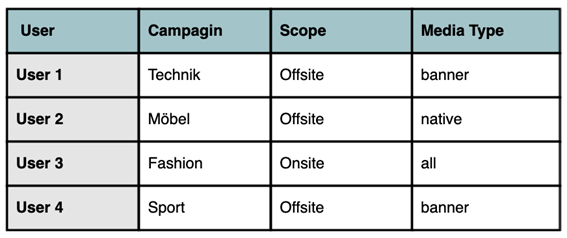

Figure 2: User assignment

Was passiert nun, wenn ein Nutzer auf otto.de zum Beispiel auf eine Angebotsseite mit Tablets oder Smartphones kommt?

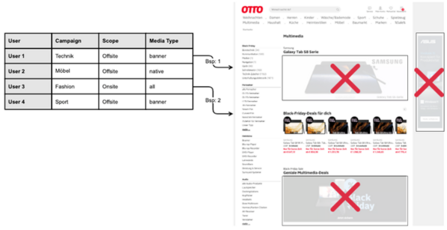

Figure 3: Problem 1

In order to fix this problem, one needs to change the language model in a fundamental manner towards a stronger query-centricity. Traditionally, language models that underpin semantic product search have often been trained with product- and query-texts. However, since product-texts are usually much longer, this often does not leave not enough bandwidth in these models to learn all kind of different query variations.

We have alleviated this problem by training the model on queries only and have included all query texts with spelling mistakes. In addition, we have fundamentally altered the tokenization strategy and have used more and smaller tokens for the training of the language model so that it can learn the correct semantic despite variations in the spelling. This makes the model much more robust.

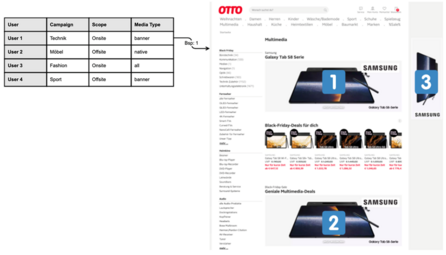

Figure 4: Problem 2

Usually, a bid request includes all placements/ad slots on a website. Although bids are now submitted individually for all placements, the previous assignment is based on batch processes. As a result, a user is always assigned to precisely one campaign for 2 hours. If 3 placements are available on a website and 2 placements are won, then the same campaign and thus the same advertising medium is displayed on both placements.
In our example, a Consumer Electronics campaign was calculated for User 1 which also has the right scope. This means that all advertising spaces on the webpage are attributed to the same campaign and this results in the display of similar advertising media on all placements.

On top of the two problems we mentioned above, there was another challenge – not so much a technical or professional issue as an organisational one. According to Wikipedia, 'Conway's Law' postulates that:

"Organizations are compelled to design systems that mirror their own communication structure."

Well, this 'law' is also reflected in our own product! The operation of the SSP/DSP infrastructure and the execution of the model results were carried out by one team, and the Data Science models by another team – maybe you can imagine what difficulties this might cause. The different programming languages alone (Data Science models in Python, DSP/SSP in GO) made algorithm mods and testing difficult.
Aiming at further development we therefore also needed to tackle the issue of product interfaces and whether it would be possible for both teams to develop more independently of each other.

So how could we tackle these issues? First of all, through discussion. Both teams' Developers summarised the core requirements in a series of joint meetings, as follows:

• Calculation of user assignment per ad slot/placement, i.e. no longer just one campaign per user
• Consideration of the user's current environment (onsite, offsite, app, URL)
• Independence in Data Science development.

To implement these requirements successfully we needed to assign users to a campaign and placement much faster and more flexibly than before. And to be able to take environmental information into account, the calculation would have to be carried out in real time. So we clearly needed real-time assignment going forward.

With one problem solved we now faced implementation. It quickly became clear that we wouldn't be able to implement the new requirements with the existing implementation methodology. Here are just a few of the roadblocks:

• The bid function must not become so complicated that it prevents the CPM being calculated in the low latency range
• A lot of data have to be accessed at short notice, which would increase the access demand on our database around 1000x
• Data volume and data size (e.g. features) would grow massively
• Data Science teams would be severely limited if changes need to be made.

How do you manage to calculate the optimal bid level and campaign in real time? A range of differing factors such as budget, relevant campaigns and highly diverse user features need to be available in milliseconds and finally related to each other using a formula provided by the Data Scientists... and all this with a very low latency!

Since one of our goals was also to safeguard the independence of the Data Scientists, we wanted to avoid implementing a complex static function directly in a service. Reading and writing high data volumes from and to a database failed the speed test, and pre-calculating individual steps was in turn not flexible enough to deal with these problems.

Figure 5 - TensorFlow logo

After extensive consideration and discussion, the best option turned out to be a Machine Learning framework that allows a complete trained model, including the associated data, to be exported. This exported model would then need to be integrated into a service and called up via an interface.

This led to our approach of using TensorFlow and TensorFlow Serving, developed by Google to simplify precisely this type of use-case. TensorFlow is a framework for implementing Machine Learning and Artificial Intelligence tasks; with TensorFlow, Data Scientists can encapsulate models and data in an exportable format, thus maintaining control over the algorithms and modifying them independently without requiring further development effort in the SSP or DSP. TensorFlow Serving offers a simple, powerful way to implement the models operationally after training them. Essentially, the enriched bid requests can be sent to TensorFlow Serving via API and the response, consisting of the bid and the campaign, can be read.

For the calculation, a major portion of the data and features were already implemented in the TensorFlow models, then exported as a 'saved model', making the models a chunky >15 GB. The models are fully loaded into Orbidder by the TensorFlow Serving model server. This allows for very fast model-code execution and response times in the 10 to 20 millisecond range.

For us to be able to calculate the bids and the campaigns, only the enriched bid requests are now missing. In addition to the user ID, these also include information on campaigns, context and budget. The TensorFlow Serving model server offers out-of-the-box interfaces for gRPC and REST, which then allow the model to be harnessed. The response is then further processed in the SSP and a bid is made for a placement, which may then lead to a webpage impression and ideally to a click.

For more detailed content regarding bid calculation please have a look at the blogpost by our Data Science colleagues.

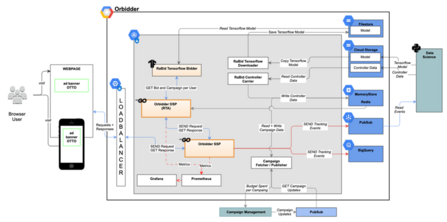

Figure 6: Architecture flow map

Kubernetes
The Kubernetes cluster consists of individual node pools in different zones to meet the different services requirements (CPU vs. RAM).

Redis
Our application cache holds data between 1 and 60 seconds, after which it updates itself with data from the Redis.

Cloud Storage
Cloud storage is used for easy file exchange as well as for storing and archiving data.

PubSub
This is a message broker for transferring bids, impressions and click events, as well as making campaign
modifications.

BigQuery
A data warehouse for permanent data storage to improve models and algorithms, as well as to reconcile revenues and expenditures.

Filestore
Given that in GKE we can't pod-mount a storage that simultaneously reads and writes, we use Filestore (NFS) to
enable this – it's necessary to exchange TensorFlow models without downtime.

Prometheus / Grafana
Our Services generate metrics in real time; these are then stored in Prometheus and visualized via Grafana.

TensorFlow Serving
In order to run the Data Scientists' models operationally, these models are exported with all required data and then requested with TensorFlow Serving via REST with bid requests.

• 71 billion requests were handled by the Orbidder SSP in October 2022
• On average, Orbidder processes between 25,000 and 30,000 requests a second
• 100,000 requests per second is the maximum logged throughput of requests to the Orbidder SSP
• The average request processing latency 15 milliseconds
• The Orbidder GCP Kubernetes cluster logs around 1,000 service instances (pods) in a given day.
